IRIDI PRO
Control system (visualization + server) for large automation projects
The more complicated an automation object is (smart homes, yachts, hotels, etc.) the more requirements and demands a customer has.
iRidi pro is a tool for installers that allows to:
- – realize all demands of a customer;
- – integrate any equipment in a project;
- – create a good-looking control interface.
Where Our Customers Use iRidi Pro
-
Home cinema -
Light control
-
Multiroom -
Climate control
-
Smart home -
Security
-
Office -
Hospital
-
Congress hall -
Apartment building
-
Hotel -
Smart building
Components of iRidi Pro
iRidi Studio
environment to develop interfaces
and server projects.
i3 Pro
end-user app to control
Smart home.
A license is paid once and does not need to be renewed every month/year. One license is used for one object.
iRidi Server
controller for automation systems
and IoT to collect and analyze
data, to export and import
databases, to create scenes
and schedules, etc.
Database of drivers
Database of drivers for
different systems (AMX,
Crestron, BACnet, Modbus,
Helvar, etc.)

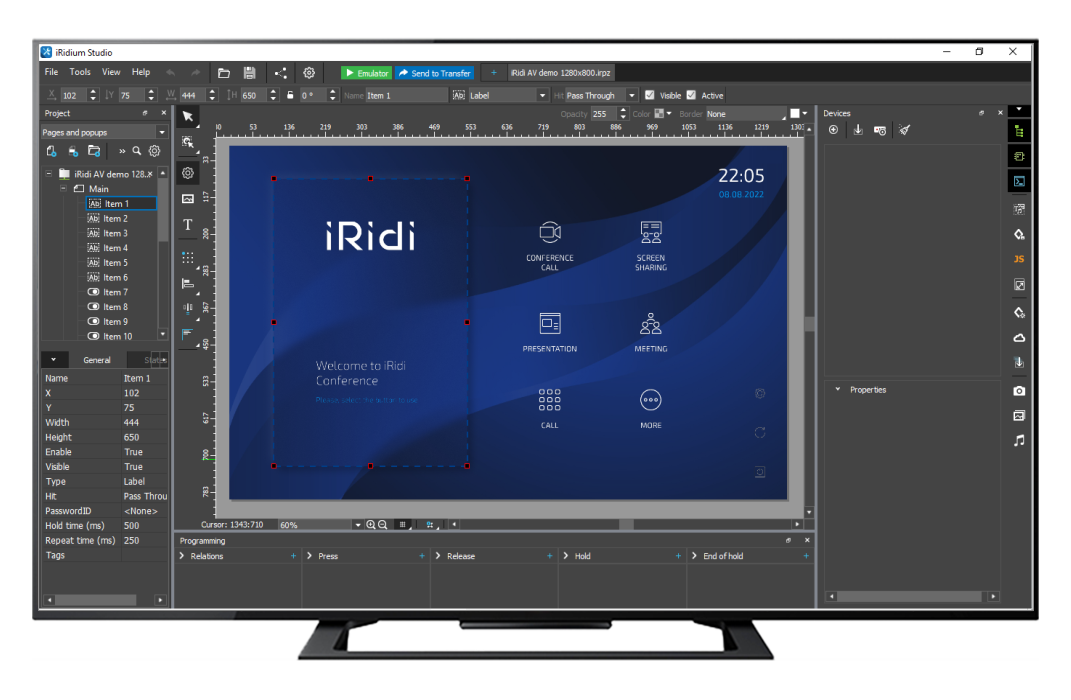

iRidi Studio
Environment to develop interfaces and server projects
Wide choice of graphic items and ready designs
Create an interface with the help of Gallery, using ready buttons, sliders, lists and other items.
Use ready interface designs that can suit any taste. You can see ready interface designs here.
Support of Most Automation Standards
iRidium allows to control everything from one interface. You simply select a required protocol, set commands (control channels) and assign them to graphic items.
iRidium supports the following protocols: AMX, KNX, HDL, Crestron, Modbus, BACnet, Helvar, Beckhoff, Clipsal, Elko EP, Lutron, MQTT, Domintell, Duotecno, Global Caché, Larnitech, Z-wave.
Testing interface work with equipment
The Emulator allows to test interface work, to see how control commands work when creating a project. This function is convenient in debugging and it saves time.
JavaScript Editor
JavaScript in iRidium is a programming language on the basis of JavaScript with additional functions and methods. It allows to set complicated scenes and to add to your project equipment that is not currently supported in iRidium by creating your own drivers.
Amazing Interfaces to Impress Your Clients
Videos of Projects Realized with iRidi Pro
Training courses for those who are interested in learning to make cool projects with iRidi Pro
i3 Pro App
iRidi Server
For smart homes and
commercial installations
For complicated large-scale
installations
For small
projects
iRidi Server UMC
Processor 1GHz CPU NXP imx6
RAM 512 Mb
Non-volatile memory (executable code and data) 4GB
Interfaces KNX TP1-256 (optional), RS-485(optional), LAN, USB A
Power supply 12...30 V DC
Power consumption max 2.5 W
iRidi Server NUC
Intel Celeron, Core i3, Core i5, Core i7
2.5" Drive or M.2 SSD
Intel HD Graphics HDMI 2.0a, USB-C (DP1.2) or VGA (HDB15) built-in video adapter
Windows* 10
iRidi Server RPi
Quad Core 1.2GHz Broadcom BCM2837 64bit CPU
1GB RAM
BCM43438 wireless LAN and Bluetooth Low Energy (BLE) on board
100 Base Ethernet
40-pin extended GPIO
Upgraded switched Micro USB power source up to 2.5A
9 Reasons to Choose iRidi Server
Local work without Internet access
Automation systems must not depend on Internet access. Some commercial projects are not allowed to have Internet access for security reasons.
More control capabilities of equipment
In many cases equipment can have only one connection, for example, Global Caché, Marantz, Beckhoff. If you want to control this equipment from more than one panel, a server is required. A server connects to equipment and allows any number of panels to control this equipment.
Gateway between different systems
It’s common practice to use equipment working via different protocols in large automation projects, for example KNX to control light, blinds, shutters, climate, Modbus in engineer systems (pumps, boilers), IP-protocol to control AV equipment.
Thanks to iRidi, there is no need to use different gateways from KNX to other systems. iRidi functions as a universal gateway and a single controller for all systems.
Built-in JavaScript
It is often required to set complicated logics of equipment work. iRidi JavaScript allows to realize all demands of a customer.
Remote control
iRidi Server works 24/7 and provides remote control of an automation object. A server and a panel interact via our own protected protocol.
Physical interfaces and other protocols
iRidi Server UMC has a module structure. It can include KNX, RS 485 (Modbus, HDL), 1Wire, Z-wave. It allows to save on purchasing different gateways and makes integration of different automation systems easier.
Support of most protocols
Our installers love iRidi for supporting numerous protocols. Support of protocols in iRidi includes not only support on the driver level, but also the scanning function, import of settings and other features that make setting easier.
If a system is not yet supported by us, our installers use iRidi driver Development Kit and realize support of required systems themselves.
If your company is a manufacturer of automation equipment, write us. We are open to cooperation and can add support of your protocol to our solution.
Hardware and software realization
Our server has both hardware (iRidi UMC, RPi, NUC) and software (software agent for Windows) realizations. The software can be downloaded from our web-site and can be used in large-scale objects and in a showroom.
Conversion of an automation object into a part of global IoT structure
iRidium server allows to set intellectual data exchange from KNX to Modbus, Crestron, etc., to MQTT and send them to cloud services and IoT platforms. Thus, you can integrate different objects in a single global system.
Database of Drivers for Professional Automation Systems
Drivers for professional systems are written in C++, their work is fast and stable.
iRidium is as a universal gateway. Thanks to it there is no need to use different hardware gateways from one system to another.
JS Modules
Modules for popular AV equipment and IoT devices are examples of possible drivers to control equipment.
To use JS modules in your projects, knowledge of iRidium script is required.
Other Features
Voice control
iRidi allows to integrate KNX, AMX, Crestron, Modbus, HDL and other professional systems with voice assistants.
Learn more
Intercom
Audio and video streams, as well as opening doors, are supported. Mobotix, Siedle, 2N, TrueIP, BusIP, DoorBird, etc. intercoms are successfully integrated. Push-notifications about a call come to a panel (smart phone) in any part of the world.
Integration with IP-cameras
Video streams of all modern IP-cameras, ONVIF and control of PTZ camera rotation are supported.
iRidi script
Built-in JavaScript and iRidi API allow to create advanced visualization, drivers to integrate third-party equipment, complicated logics of project and server work, graphs and trends. Data are processed by iRidi server.
Graphs and trends
Numerous capabilities to visualize data.
Notifications
A lot of notifications are available:
- push
- sms
- e-mail
- messengers (Telegram, Viber, Slack)
- phone call (via SIP)
Remote control
Different ways of remote control:
– with “white” IP-address - VPN or PortForwarding
– with "grey" IP- address - DynDNS + VPN/PortForwarding
– in other cases - iRidium Remote Cloud (soon)
iRidium server is required for remote control.
BYOD (Bring Your Own Device)
Do you create solutions for hotels, offices and meeting rooms? - BYOD allows your customers to control a hotel room or a meeting room from their own mobile device with a time limit.
Learn more
Data exchange
iRidium server allows to set intellectual data exchange from KNX to other systems and vice versa.
Learn more
Why Installers Choose iRidi
Unisons (Latvia)
Arthur Chivkulis, project manager
iRidium mobile product seemed modern, interesting and promising. I have been using this software for 5 years and it has become even more attractive in terms of functions and capabilities. iRidium allows to realize centralized control of engineer systems in an apartment as well as in a county house. We solved all kinds of tasks with iRidium both simple, such as control of A/V equipment, and extraordinary ones.
DomVision (USA)
Roger Wicks, programmer
iRidium mobile company created a fully-functional solution that allows to control a wide range of devices from smart phones and tablets on the basis of iOS and Android. You can create a control interface that shows the unique character of your company and the style of your customer. iRidium mobile company is a team of competent enthusiastic people who are always ready to help. In my opinion, there is only one possible solution to control KNX.
Intelliger Ltd (Russia)
Daria Semenova, development director
We have been working with iRidium platform for quite a while. We think that at the moment it is the best solution to control home automation from mobile devices. It mostly refers to projects of private houses, where not only functions but also the graphical part of the interface matters. iRidium has a lot of advantages. The main for us is support of different equipment and different protocols, capability to create an individual interface without inviting professional programmers, fast technical support and steady development of the software platform.
Sovremeniy gorod
Evgeniy Kostenko, development director
I’ve been working with iRidium for 6 years. Both the software and iRidium mobile team are absolutely flexible. Feedback comes in no time. It’s not possible to find a more responsive team on the international market. That’s why products by iRidium mobile do not only keep up with the times, but go ahead. It’s an ideal software gateway. In addition, it supports many platforms and it does not take a lot of time to test the software right on the installation. Thanks to available functions, it can suit both a beginning installer and an advanced integrator.
«I-home ru» lab of advanced technologies (Russia)
Sergey Maksukov, chief engineer
I like iRidi pro. It does not fail. Of course, there are alternatives. But there are no direct alternatives in the number of functions. It is important for me that I can develop an individual interface. Ready interfaces may have items that a customer does not like. And very often it is not possible to realize what a customer wants. iRidium does not have such limitations.
Figures Speak for Themselves
Some statistics
72
countries buy iRidi
75
installation-companies
become iRidium dealers
every month
786
certified specialists
3 000
automation projects
are created with iRidi
every year
Membership in Associations
